Pryme SPM2200 "Trooper II" is a Light Duty Speaker Microphone for high-noise environments

OVERVIEW
WARRANTY
PRODUCT REVIEW

SPM2200 TROOPER II

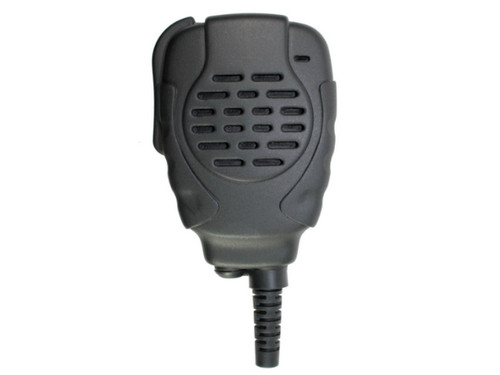

PRYME SPM-2200 TROOPER II WEATHERIZED SPEAKER MICROPHONE

The Trooper II is a Weatherized version of the Trooper. Waterproof and Dustproof rated to IP57 (Ingress Protection Level). The Trooper II has many features including a large PTT button for easy operation, noise canceling microphone, quality Hydra connectors and quality Rino Cables.

The SPM-2200 TROOPER II is a lightweight, compact remote speaker microphone designed for use in heavy-duty applications. The SPM-2200 is meant to be worn on the user's lapel, duty belt, or shoulder epaulet. It secures to the user's clothing by way of a large metal-reinforced clip which rotates 360 degrees. The SPM-2200 features a powerful built-in speaker that should provide loud receive audio in all but the noisiest of environments.

•For additional privacy and security, the Trooper II also has a built-in earphone jack, allowing operation of an optional remote earphone with a standard 3.5 mm plug such as our LOOKOUT™, RECON™ or SCOUT™

The SCOUT earphone option (EH-1289SC) is a D-Ring style as shown in the picture above. It is a Listen-Only Medium Duty Earphone with a coiled 15 inch cable. ($20)

The RECON earphone option (EH-1389SC) is an acoustic tube earphone as shown is the picture above. It features a twist connector. It is a Medium Duty Earphone with a coiled 15 inch cable. ($27)

The LOOKOUT earphone option (EH-389SC) is a soft rubber ear-hook, as shown is the picture above that helps keep the earphone in place during normal activities. The earphone provides hours of comfort. It is a Light Duty Earphone with a coiled 15 inch cable. ($17)

SPM-2200 Trooper II Features:

•2 Year Manufacturer Warranty

•High-quality electret condenser-style microphone element that produces excellent transmit audio as well as a powerful speaker

•Spring loaded, metal reinforced clothing clip which can be rotated 360°

•Heavy-duty construction, featuring polyurethane cable, rubber, and high-impact polycarbonate. Rated at IP57.

Here is a list of Manufacturers and the Model Numbers of the radios each SPM-2200 will fit. If you do not find your model please contact us for assistance.

SPM-2237 Harris M/A Com X37 (MC3) (add $20): P5300, P5400, P7400, Unity XG-75

SPM-2200-H8 HYT X00 series Multi-Pin Radios (add $20): X1e, X1p, PD-6xx

SPM-2201 HYT X01 Two Pin Radios: TC268, TC268S, TC368, TC368S, TC270

SPM-2203 HYT X03 series: TC500, TC600, TC1600

SPM-2200-H3 HYT X03s series Multi-Pin Radios (add $5): TC1600, TC500, TC610, TC620, TC700, TC700EX, and all PD-5 series

SPM-2233 HYT X33 series Multi-Pin Radios (M2) (add $20): TC980

SPM-2243 HYT X43 series Multi-Pin Radios (M3) (add $20): PT790, TC3000, TC3600, TC610P, TC780, TC780MPT

SPM-2255 HYT X55 series Multi-Pin Radios (H5) (add $20): PT702, PT782, PT785, PT580, PD702

SPM-2220 ICOM X20 Multi-Pin Radios (add $20): ICF9011, ICF9021, IC4261, IC3261

SPM-2210 ICOM X10 Multi-Pin Radios (add $20): ICF3061T/S, ICF30G, ICF30GS, ICF30GT, ICF3161, ICF31GS, ICF31GT, ICF4061T/S,
ICF40G, ICF40GS, ICF40GT, ICF4161, ICF4161, ICF50, ICF50V, ICF60, ICF60V, ICF70, ICF80, ICM88

SPM-2230s ICOM X30s Multi-Pin Radios (add $5): F3xxx/4xxx, F14/24 series

SPM-2201 KENWOOD X01 Two Pin Radios: TH22AT, TH235A, TH28A, TH42AT, TH48A, TH77A, TH78A, THD7A(G), THF6, THF6A,
THG71A, THK2AT, TK208, TK2100, TK2102, TK2130, TK2160, TK2170, TK220, TK2200, TK2200LP, TK2212L, TK2300, TK2360,
TK2302VK, TK240, TK2400, TK2402, TK240D, TK248, TK250, TK260, TK260D, TK260G, TK270, TK270G, TK272G, TK308, TK3100,
TK3101, TK3102, TK3130, TK3131, TK3160, TK3170, TK3173, TK320, TK3200, TK3200LP, TK3212L, TK3230, TK3230XLS, TK3300,
TK3302UK, TK3360, TK340, TK3400, TK3402, TK340D, TK348, TK350, TK353, TK360, TK360G, TK370, TK370G, TK372G, TK373,
TK430, TK431, TK2312, TK3312

SPM-2211 KENWOOD X11 Multi-Pin Radios (add $20): NEXEDGE, NX200, NX300, TK190, TK2140, TK2180, TK280, TK290, TK3140,
TK3148, TK3180, TK380, TK385, TK390, TK480, TK481, TK5210, TK5220, TK5310, TK5320, TK5400

SPM-2203 MOTOROLA X03 Two Pin Radios: AXU4100, AXV5100, BPR40, CLS1110, CLS1410, CLS1413, CLS1450C, CLS1453C,
CP100, CP150, CP185, CP200, CP88, CT125, CT150, CT250, CT450, CT450LS, DTR, DTR410, DTR550, DTR650, GP200, GP2000,
GP300, GP308, GP68, GP88, GTI, GTX, LTS2000, P040, P080, P110, P1225, P1225LS, P200, P2000, PR400, RDK, RDU, RDU2020,
RDU2080D, RDU4100, RDU4160D, RDV, RDV2020, RDV2080D, RDV5100, RMM2050, RMU2040, RMU2080, RMU2080D, RMV2080,
SP10, SP21, SP50, VL50, XTN, XTN446, XTN500, XTN600, XU1100, XU2100, XU2600, XV1100, XV2100, XV2600, XU2100, XU2600,
XV1100, XV2100, XV2600

SPM-2223 MOTOROLA X23 Multi-Pin Radios (add $20): GP900, GP9000, HT1000, MT1500, MT2000, MTS2000, MTX8000, MTX838,
MTX900, MTX9000, MTX960, MTXLS, PR1500, X1500, XTS1500, XTS2000, XTS2500, XTS3000, XTS3500, XTS5000

SPM-2233 MOTOROLA X33 Multi-Pin Radios (add $20): CBPRO, GP1280, GP140, GP320, GP328, GP329, GP338, GP339, GP340,
GP360, GP380, GP640, GP650, GP680, GP960, HT1250, HT1250LS, HT1550, HT1550XLS, HT750, JT1000, MTX8250, MTX8250LS,
MTX850, MTX850LS, MTX9250, MTX950, PR860, PRO5150, PRO5350, PRO5450, PRO5550, PRO5750, PRO7150, PRO7350, PRO7450,
PRO7550, PRO7750, PRO9150, PTX700, PTX760, PTX780

SPM-2243 MOTOROLA X43 Multi-Pin Radios (add $20): EX500, EX600, EX600XLS, GL2000, GP328 PLUS, GP338 PLUS, GP344,
GP388, PRO5151 Elite, EX560

SPM-2283 MOTOROLA X83 Multi-Pin Radios (add $20): MotoTRBO, APX7000, XPR6300, XPR6500, XPR6550, APX 7500, XPR6100,
XPR6350, XPR6580

SPM-2200-M11 MOTOROLA XM11 Multi-Pin Radios (add $20): XPR3300, XPR3500

SPM-2222s VERTEX X22s (Y4) One Pin w/ Screw Radios (add $5): VX130, VX131, VX132, VX160, VX180, VX210, VX210A, VX230,
VX231, VX350, VX351, VX354, VX400, VX410, VX420, VX427, VX450, VX454, VX459, EVX530

SPM-2232 VERTEX X32 (Y3) Multi-Pin Radios (add $20): VX820, VX821, VX824, VX829, VX871, VX874, VX879, VX920, VX921, VX924,
VX929, VX971, VX974, VX979, VXP820, VXP920

SPM-2205 Optional Quick Disconnect (QD) Adapter. See picture above for details. The PRYME Quick Disconnect feature is available on our SPM-300EB, SPM-1200, SPM-1200C, SPM-1300, SPM-1400, SPM-2100, SPM-2200, SPM-2300, SPM-3000, SPM-3300, and SPM-4200.

PRYME SPM-2200 HOW-TO MANUAL

Pryme Connector Chart

Please see PYRME for the most up to date version of this warranty.

PRYME Radio Products warrants this product against defects in materials or workmanship for a period of two years from the date of retail purchase.

PRYME will repair or replace a defective unit, at our option, without charge for parts or labor. The limited warranty is extended only to the original purchaser and is valid only to consumers in the United States and Canada. It does not cover damage or failure caused by or attributable to Acts of God, abuse, misuse, improper or abnormal usage, faulty installation, improper maintenance, lightning, or other incidences of excessive voltage, or any tampering or repairs by other than a PRYME authorized repair facility. It does not cover replacement of consumable parts, transportation costs, or damage in transit. Repair or replacement under the terms of this warranty does not extend the terms of this warranty.

This warranty can only be modified by an office of PRYME Radio Products, and then only in writing. Should this product prove defective in workmanship or material, the consumer’s sole remedies shall be such repair or replacement as provided by the terms of this warranty. Under no circumstances shall PRYME Radio Products be liable for any loss or damage, direct, consequential, or incidental, arising out of the use of or inability to use this product. Some states do not allow limitations on how long an implied warranty lasts or the exclusions or limitations of incidental or consequential damages, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights. You may also have other rights, which may vary, from state to state. For support or warranty service on your PRYME product, contact us at 1-800-666-2654 or visit us on the web at www.PRYME.com.

© 2011 PRYME Radio Products, Brea CA. All rights reserved. PRYME® and PRYME BLU™ are trademarks owned by PRYME Radio Products. All other product or service names are the property of their respective owners.

DISCLAIMER: The Bluetooth wireless link used by PRYME BLU products is an open standard, unsecured technology. As such, it is not recommended for first-responder or other mission critical users.
